| RGW25CC滑块|HIWIN滑块轴承、RGW25HC滑块|HIWIN滑块轴承、RGW35CC滑块|HIWIN滑块轴承、RGW35HC滑块|HIWIN滑块轴承 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730、52217447、52251441 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
 |
| |
|

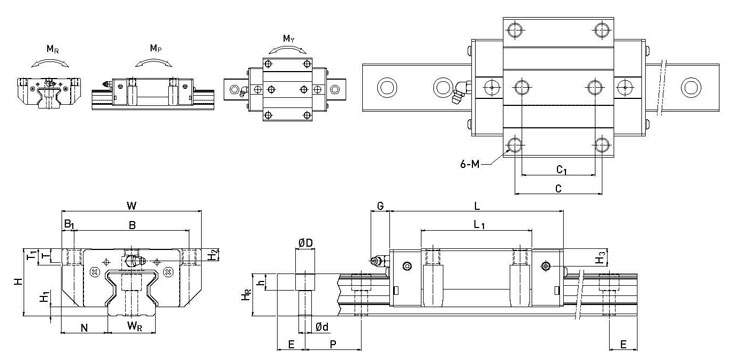

型号 |
组件尺寸
(mm) |
滑块尺寸
(mm) |
滑轨尺寸
(mm) |
|
H |
H1 |
N |
W |
B |
B1 |
C |
C1 |
L1 |
L |
G |
M |
T |
T1 |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
|
RGW 25CC |
36 |
5.5 |
23.5 |
70 |
57 |
6.5 |
45 |
40 |
64.5 |
97.9 |
12 |
M8 |
9.5 |
10 |
6.2 |
6 |
23 |
23.6 |
11 |
9 |
7 |
30 |
20 |
|
RGW 25HC |
81 |
114.4 |
|
RGW 35CC |
48 |
6.5 |
33 |
100 |
82 |
9 |
62 |
52 |
79 |
124 |
12 |
M10 |
12 |
13 |
9 |
12.6 |
34 |
30.2 |
14 |
12 |
9 |
40 |
20 |
|
RGW 35HC |
106.5 |
151.5 |
|
RGW 45CC |
60 |
8 |
37.5 |
120 |
100 |
10 |
80 |
60 |
106 |
153.2 |
12.9 |
M12 |
14 |
15 |
10 |
14 |
45 |
38 |
20 |
17 |
14 |
52.5 |
22.5 |
|
RGW 45HC |
139.8 |
187 |
|
RGW 55CC |
70 |
10 |
43.5 |
140 |
116 |
12 |
95 |
70 |
125.5 |
183.7 |
12.9 |
M14 |
16 |
17 |
12 |
17.5 |
53 |
44 |
23 |
20 |
16 |
60 |
30 |
|
RGW 55HC |
173.8 |
232 | |
| |
|
型号 |
滑轨的
固定螺栓尺寸
(mm) |
基本动
额定负荷
C(kN) |
基本静
额定负荷
C0(kN) |
容许静力矩 |
重量 |
|
MR
(kN-m) |
MP
(kN-m) |
MY
(kN-m)) |
滑块
(kg) |
滑轨
(kg/m) |
|
RGW 25CC |
M6×20 |
27.7 |
57.1 |
0.758 |
0.605 |
0.605 |
0.67 |
3.08 |
|
RGW 25HC |
33.9 |
73.4 |
0.975 |
0.991 |
0.991 |
0.86 |
|
RGW 35CC |
M8×25 |
57.9 |
105.2 |
2.17 |
1.44 |
1.44 |
1.61 |
6.06 |
|
RGW 35HC |
73.1 |
142 |
2.93 |
2.6 |
2.6 |
2.21 |
|
RGW 45CC |
M12×35 |
92.6 |
178.8 |
4.52 |
3.05 |
3.05 |
3.22 |
9.97 |
|
RGW 45HC |
116 |
230.9 |
6.33 |
5.47 |
5.47 |
4.41 |
|
RGW 55CC |
M14×45 |
130.5 |
252 |
8.01 |
5.4 |
5.4 |
5.18 |
13.98 |
|
RGW 55HC |
167.8 |
348 |
11.15 |
10.25 |
10.25 |
7.34 | | |
|
|
|
|
|
|
|
