XST410-31外球面轴承带座、XST410外球面轴承带座、XST410-32外球面轴承带座、XST411外球面轴承带座、XST411-35外球面轴承带座、XST413-39外球面轴承带座、XST413-40外球面轴承带座、XST413外球面轴承带座-南京轴承厂

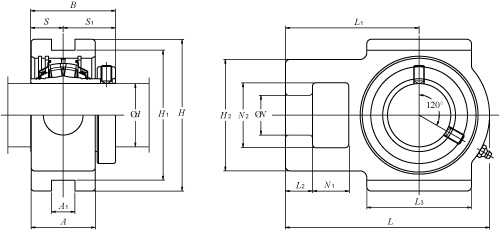

组件型号	轴承公称型号	轴径	H 尺寸	L 尺寸	A1 尺寸	基本额定负荷 Cr Cor
XST410-31	XS410-31	1-15/16 in	120.7 mm 4-3/4 in	157.2 mm 6-3/16 in	17.5 mm 11/16 in	96.4 kN 21672 lb	116.9 kN 26280 lb
XST410	XS410	50 mm	120.7 mm 4-3/4 in	157.2 mm 6-3/16 in	17.5 mm 11/16 in	96.4 kN 21672 lb	116.9 kN 26280 lb
XST410-32	XS410-32	2 in	120.7 mm 4-3/4 in	157.2 mm 6-3/16 in	17.5 mm 11/16 in	96.4 kN 21672 lb	116.9 kN 26280 lb
XST411	XS411	55 mm	133.4 mm 5-1/4 in	179.4 mm 7-1/16 in	20.6 mm 13/16 in	120.8 kN 27157 lb	146.8 kN 33002 lb
XST411-35	XS411-35	2-3/16 in	133.4 mm 5-1/4 in	179.4 mm 7-1/16 in	20.6 mm 13/16 in	120.8 kN 27157 lb	146.8 kN 33002 lb
XST413-39	XS413-39	2-7/16 in	149.2 mm 5-7/8 in	198 mm 7-51/64 in	27 mm 1-1/16 in	173.4 kN 38982 lb	220.4 kN 49548 lb
XST413-40	XS413-40	2-1/2 in	149.2 mm 5-7/8 in	198 mm 7-51/64 in	27 mm 1-1/16 in	173.4 kN 38982 lb	220.4 kN 49548 lb
XST413	XS413	65 mm	149.2 mm 5-7/8 in	198 mm 7-51/64 in	27 mm 1-1/16 in	173.4 kN 38982 lb	220.4 kN 49548 lb
XST415-43	XS415-43	2-11/16 in	169.9 mm 6-11/16 in	225.4 mm 8-7/8 in	46 mm 1-13/16 in	186.8 kN 41995 lb	244.4 kN 54944 lb
XST415-44	XS415-44	2-3/4 in	169.9 mm 6-11/16 in	225.4 mm 8-7/8 in	46 mm 1-13/16 in	186.8 kN 41995 lb	244.4 kN 54944 lb
XST415-47	XS415-47	2-15/16 in	169.9 mm 6-11/16 in	225.4 mm 8-7/8 in	46 mm 1-13/16 in	186.8 kN 41995 lb	244.4 kN 54944 lb
XST415	XS415	75 mm	169.9 mm 6-11/16 in	225.4 mm 8-7/8 in	46 mm 1-13/16 in	186.8 kN 41995 lb	244.4 kN 54944 lb
XST415-48	XS415-48	3 in	169.9 mm 6-11/16 in	225.4 mm 8-7/8 in	46 mm 1-13/16 in	186.8 kN 41995 lb	244.4 kN 54944 lb
XST418-55	XS418-55	3-7/16 in	198.4 mm 7-13/16 in	255.6 mm 10-1/16 in	46 mm 1-13/16 in	284.0 kN 63846 lb	383.7 kN 86260 lb
XST418-56	XS418-56	3-1/2 in	198.4 mm 7-13/16 in	255.6 mm 10-1/16 in	46 mm 1-13/16 in	284.0 kN 63846 lb	383.7 kN 86260 lb
XST418	XS418	90 mm	198.4 mm 7-13/16 in	255.6 mm 10-1/16 in	46 mm 1-13/16 in	284.0 kN 63846 lb	383.7 kN 86260 lb
