LR50/7NPP滚轮轴承、LR50/7NPPU滚轮轴承、LR50/7KDD滚轮轴承、LR50/7KDDU滚轮轴承

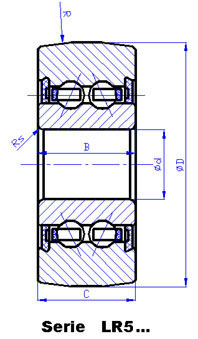

滚轮型号			重量	尺寸 (mm)						载荷		疲劳极限载荷	极限转速
哈宁轴承	德国	欧洲	≈(g)	D	d	B	C	R	Rs	Cw(N)	Cow(N)	Puw(N)	nD seals	nD shields
LR 50/5 NPP	LR50/5NPP		10	17	5	7	7	-	0.2	1650	950	39	12000	16000
LR 50/5 NPPU	LR50/5NPPU		10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR 50/5 KDD	LR50/5KDD		10	17	5	7	7	-	0.2	1650	950	39	12000	16000
LR 50/5 KDDU	LR50/5KDDU		10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR 50/6 NPP	LR50/6NPP		20	19	6	9	9	-	0.3	2650	1310	54	11000	15000
LR 50/6 NPPU	LR50/6NPPU		20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR 50/6 KDD	LR50/6KDD		20	19	6	9	9	-	0.3	2650	1310	54	11000	15000
LR 50/6 KDDU	LR50/6KDDU		20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR 50/7 NPP	LR50/7NPP		20	22	7	10	10	-	0.3	3300	1690	69	10000	14000
LR 50/7 NPPU	LR50/7NPPU		20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR 50/7 KDD	LR50/7KDD		20	22	7	10	10	-	0.3	3300	1690	69	10000	14000
LR 50/7 KDDU	LR50/7KDDU		20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR 50/8 NPP	LR50/8NPP		30	24	8	11	11	-	0.3	4200	2360	120	10000	14000
LR 50/8 NPPU	LR50/8NPPU		30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
LR 50/8 KDD	LR50/8KDD		30	24	8	11	11	-	0.3	4200	2360	120	10000	14000
LR 50/8 KDDU	LR50/8KDDU		30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
LR 5000 NPP	LR5000NPP		30	28	10	12	12	-	0.3	4750	2850	118	9000	13000
LR 5000 NPPU	LR5000NPPU		30	28	10	12	12	500	0.3	4750	2850	118	9000	13000
LR 5000 KDD	LR5000KDD		30	28	10	12	12	-	0.3	4750	2850	118	9000	13000
LR 5000 KDDU	LR5000KDDU		30	28	10	12	12	500	0.3	4750	2850	118	9000	13000
LR 5001 NPP	LR5001NPP		30	30	12	12	12	-	0.3	4950	3100	128	8500	11000
LR 5001 NPPU	LR5001NPPU		30	30	12	12	12	500	0.3	4950	3100	128	8500	11000
LR 5001 KDD	LR5001KDD		30	30	12	12	12	-	0.3	4950	3100	128	8500	11000
LR 5001 KDDU	LR5001KDDU		30	30	12	12	12	500	0.3	4950	3100	128	8500	11000
LR 5002 NPP	LR5002NPP		50	35	15	13	13	-	0.3	6500	4100	170	7000	10000
LR 5002 NPPU	LR5002NPPU		50	35	15	13	13	500	0.3	6500	4100	170	7000	10000
LR 5002 KDD	LR5002KDD		50	35	15	13	13	-	0.3	6500	4100	170	7000	10000
LR 5002 KDDU	LR5002KDDU		50	35	15	13	13	500	0.3	6500	4100	170	7000	10000
LR 5003 NPP	LR5003NPP		70	40	17	14	14	-	0.3	7700	5200	214	6000	9000
LR 5003 NPPU	LR5003NPPU		70	40	17	14	14	500	0.3	7700	5200	214	6000	9000
LR 5003 KDD	LR5003KDD		70	40	17	14	14	-	0.3	7700	5200	214	6000	9000
LR 5003 KDDU	LR5003KDDU		70	40	17	14	14	500	0.3	7700	5200	214	6000	9000
LR 5004 NPP	LR5004NPP		120	47	20	16	16	-	0.6	11500	7700	317	5500	8000
LR 5004 NPPU	LR5004NPPU		120	47	20	16	16	500	0.6	11500	7700	317	5500	8000
LR 5004 KDD	LR5004KDD		120	47	20	16	16	-	0.6	11500	7700	317	5500	8000
LR 5004 KDDU	LR5004KDDU		120	47	20	16	16	500	0.6	11500	7700	317	5500	8000
LR 5005 NPP	LR5005NPP		150	52	25	16	16	-	0.6	11600	8100	332	4700	7000
LR 5005 NPPU	LR5005NPPU		150	52	25	16	16	500	0.6	11600	8100	332	4700	7000
LR 5005 KDD	LR5005KDD		150	52	25	16	16	-	0.6	11600	8100	332	4700	7000
LR 5005 KDDU	LR5005KDDU		150	52	25	16	16	500	0.6	11600	8100	332	4700	7000
LR 5006 NPP	LR5006NPP		250	62	30	19	19	-	1	17200	11100	462	4000	6000
LR 5006 NPPU	LR5006NPPU		250	62	30	19	19	500	1	17200	11100	462	4000	6000
LR 5006 KDD	LR5006KDD		250	62	30	19	19	-	1	17200	11100	462	4000	6000
LR 5006 KDDU	LR5006KDDU		250	62	30	19	19	500	1	17200	11100	462	4000	6000
LR 5007 NPP	LR5007NPP		300	68	35	20	20	-	1	17600	13100	490	4000	5300
LR 5007 NPPU	LR5007NPPU		300	68	35	20	20	500	1	17600	13100	490	4000	5300
LR 5007 KDD	LR5007KDD		300	68	35	20	20	-	1	17600	13100	490	4000	5300
LR 5007 KDDU	LR5007KDDU		300	68	35	20	20	500	1	17600	13100	490	4000	5300
